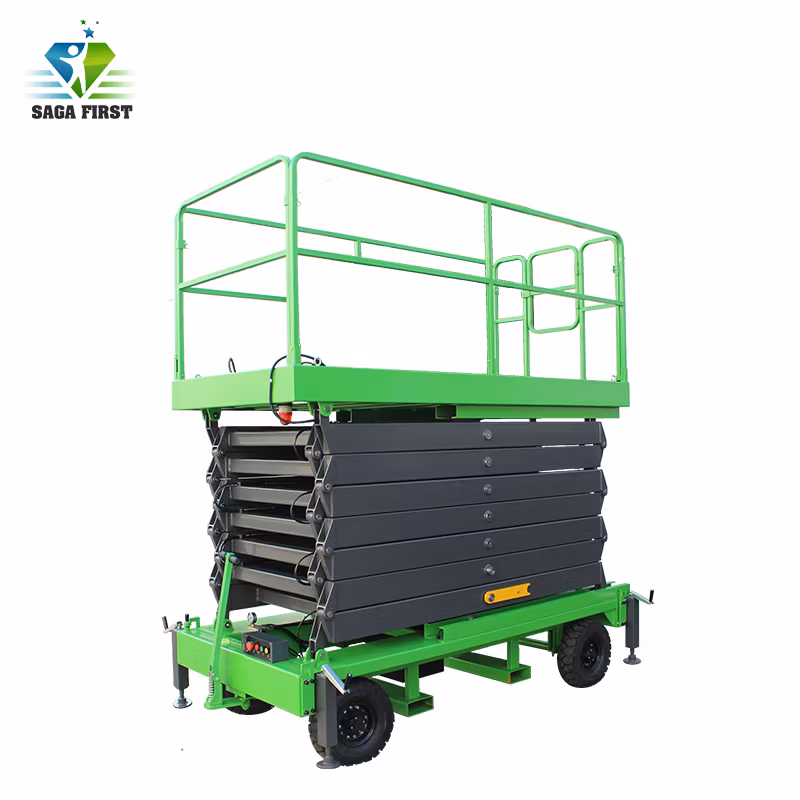

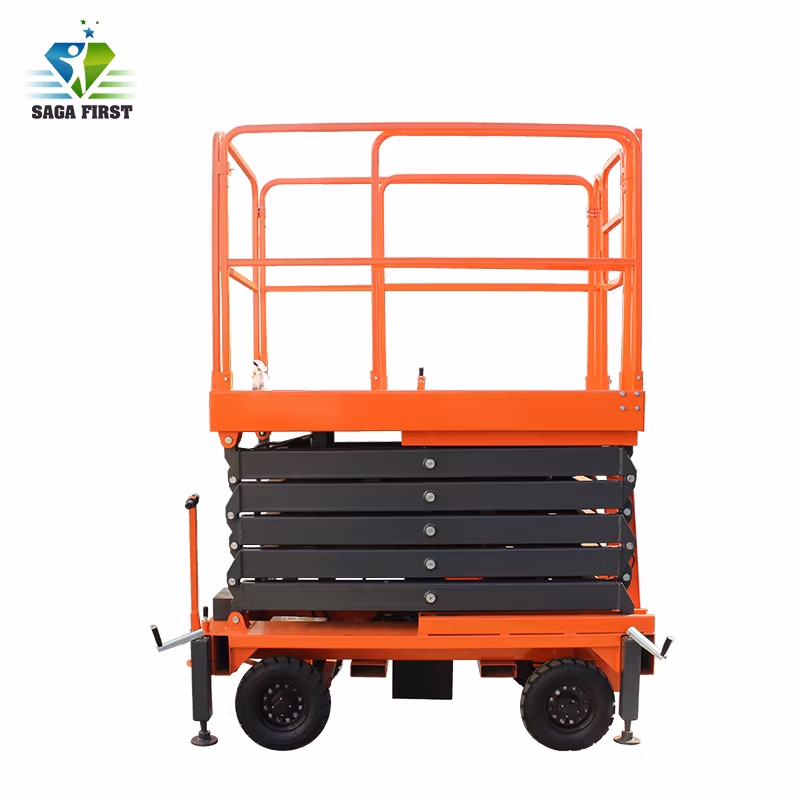

Aerial Work Platform Mobile Scissor Lift
Standard mobile scissor lifts are used to provide temporary access to high, inaccessible areas on a variety of job sites such as maintenance and construction work. They are designed to lift limited weights from 300kg~500kg and capable of being fully operated by a single person. The scissor lift is very durable , because of the high strength and high quality manganese steel.
Specification:
Introduction:
1.Moving by manually and Lifting by AC power. DC Power is optional for lifting and moving
2.Equipped with intelligent battery charger.
3.Moving backward, forward and turning by controlling the handle.
2.Simple structure, easy to maintain.
3.Flexible producing technique, suitable for customization.
Safety precautions:
1. Explosion-proof valves
2.equipped with antiskid plate
3.Overload protective system.
4.single control solenoid valves :prevent dropping if power failure.
5.Emergency decline valve
6.Four supporting lges.
Our Service:
1.We can design the customerized full electric scissor lift as per your requirement.
2.The most suitable model will be recommended to you once we know about your requirement.
3.Shipment can be arranged from our port to your destination port.
4.Opetion video can be sent to you if needed.
5.Maintenance video will be given once the full electric scissor lifts break down to help you repair.
6.Parts of full electric scissor lift can be sent to you by express within 7 days if needed.
Frequently Asked Questions:
1.How can customer buy parts once it break down?
The electric scissor lifts adopt most of the common parts of hardware.You can buy the parts in your local hardware market.
2.How can customer repair the full electric scissor lifts?
One of the great advantage of the equipment is with very very low failure rate.Even it breaks down,we can guide to repair it by video and
repair instruction.
3.How long is the quality guarantee?
One year quality guarantee.If it breaks down within one year,we can send the parts free of charge to you.
Certifications:CE,ROHS,ISO,SGS,etc.
Standard mobile scissor lifts are used to provide temporary access to high, inaccessible areas on a variety of job sites such as maintenance and construction work. They are designed to lift limited weights from 300kg~500kg and capable of being fully operated by a single person. The scissor lift is very durable , because of the high strength and high quality manganese steel.
Specification:
| Model No. | Loading Capacity (kg) | Lifting Height (m) | Platform Size (m) | Overall size (m) | Lifting Time(s) | Voltage (v) | Motor (kw) | Wheels(φ) | Net Weight (kg) |
| 450KG Loading Capacity | |||||||||
| SSL4506-H | 450 | 6 | 1.85*0.88 | 1.95*1.08*1.1 | 55 | AC380 | 1.5 | 200 PU | 800 |
| SSL4507H | 450 | 7.5 | 1.8*1.0 | 1.95*1.2*1.54 | 60 | AC380 | 1.5 | 400-8 Rubber | 1000 |
| SSL4509-H | 450 | 9 | 1.8*1.0 | 1.95*1.2*1.68 | 70 | AC380 | 1.5 | 400-8 Rubber | 1200 |
| SSL4511-H | 450 | 11 | 2.1*1.15 | 2.25*1.35*1.7 | 80 | AC380 | 2.2 | 500-8 Rubber | 1580 |
| SSL4512-H | 450 | 12 | 2.45*1.35 | 2.5*1.55*1.88 | 125 | AC380 | 3 | 500-8 Rubber | 2450 |
| SSL4514-H | 450 | 14 | 2.45*1.35 | 2.5*1.55*2.0 | 165 | AC380 | 3 | 500-8 Rubber | 2650 |
| 1000KG Loading Capacity | |||||||||
| SSL1006-H | 1000 | 6 | 1.8*1.0 | 1.95*1.2*1.45 | 60 | AC380 | 2.2 | 500-8 Rubber | 1100 |
| SSL1009-H | 1000 | 9 | 1.8*1.25 | 1.95*1.45*1.75 | 100 | AC380 | 3 | 500-8 Rubber | 1510 |
| SSL1012-H | 1000 | 12 | 2.45*1.35 | 2.5*1.55*1.88 | 135 | AC380 | 4 | 500-8 Rubber | 2700 |
| 300KG Loading Capacity | |||||||||
| SSL0316-H | 300 | 16 | 2.75*1.5 | 2.85*1.75*2.1 | 173 | AC380 | 3 | 500-8 Rubber | 3200 |
Introduction:
1.Moving by manually and Lifting by AC power. DC Power is optional for lifting and moving
2.Equipped with intelligent battery charger.
3.Moving backward, forward and turning by controlling the handle.
2.Simple structure, easy to maintain.
3.Flexible producing technique, suitable for customization.
Safety precautions:
1. Explosion-proof valves
2.equipped with antiskid plate
3.Overload protective system.
4.single control solenoid valves :prevent dropping if power failure.
5.Emergency decline valve
6.Four supporting lges.
Our Service:
1.We can design the customerized full electric scissor lift as per your requirement.
2.The most suitable model will be recommended to you once we know about your requirement.
3.Shipment can be arranged from our port to your destination port.
4.Opetion video can be sent to you if needed.
5.Maintenance video will be given once the full electric scissor lifts break down to help you repair.
6.Parts of full electric scissor lift can be sent to you by express within 7 days if needed.
Frequently Asked Questions:
1.How can customer buy parts once it break down?
The electric scissor lifts adopt most of the common parts of hardware.You can buy the parts in your local hardware market.
2.How can customer repair the full electric scissor lifts?
One of the great advantage of the equipment is with very very low failure rate.Even it breaks down,we can guide to repair it by video and
repair instruction.
3.How long is the quality guarantee?
One year quality guarantee.If it breaks down within one year,we can send the parts free of charge to you.
Certifications:CE,ROHS,ISO,SGS,etc.
