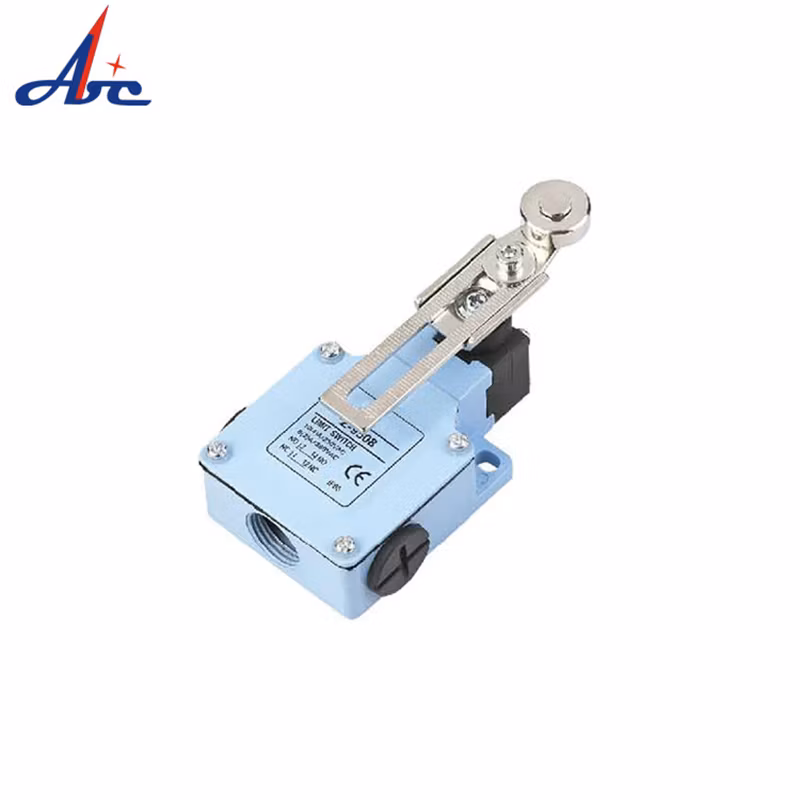

Elevator Limit Switch Adjustable Roller Arm Type
| Product Name | Limit Switch |
| Brand | Aibeiken |
| Operating Speed | 0.01mm-1m/s |
| Operating Frequency | Mechanical:240 operations/min,Electrical:20 operations/min |
| Initial Insulation Resistance | 100MΩmin.(at 500VDC) |
| Initial Contact Resistance | 25MΩmax. |
| Dielectric Strength | Between non-consecutive terminals:1,000Vrms, 50/60Hz for 1 min |
| Between non-current carrying metal parts and each terminal:2,000Vrms, 50/60Hz for 1 min | |
| Between ground and each terminal:2,000Vrms, 50/60Hz for 1 min | |
| Vibration Resistance | 10-55Hz,1.5mm double amplitude |
| Max Shock Resistance | Destruction: 1000m/s2 Malfunction: 300m/s2 |
| Operating Life | Mechanical life: 1,000,000 operations min. |
| Electrical life: 100,000 operations min. |
