Guide Shoe
Product Description

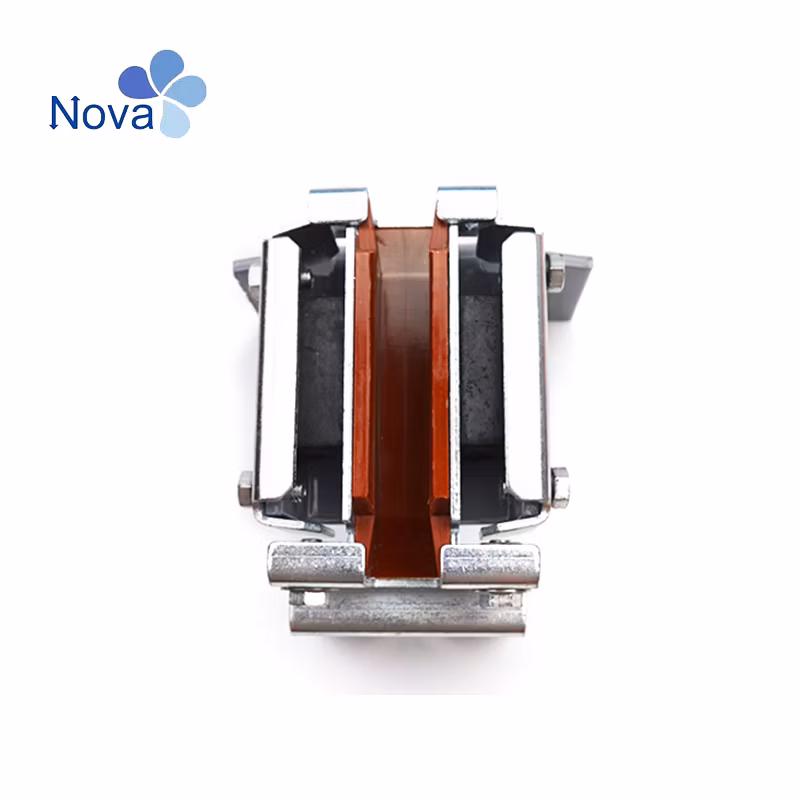

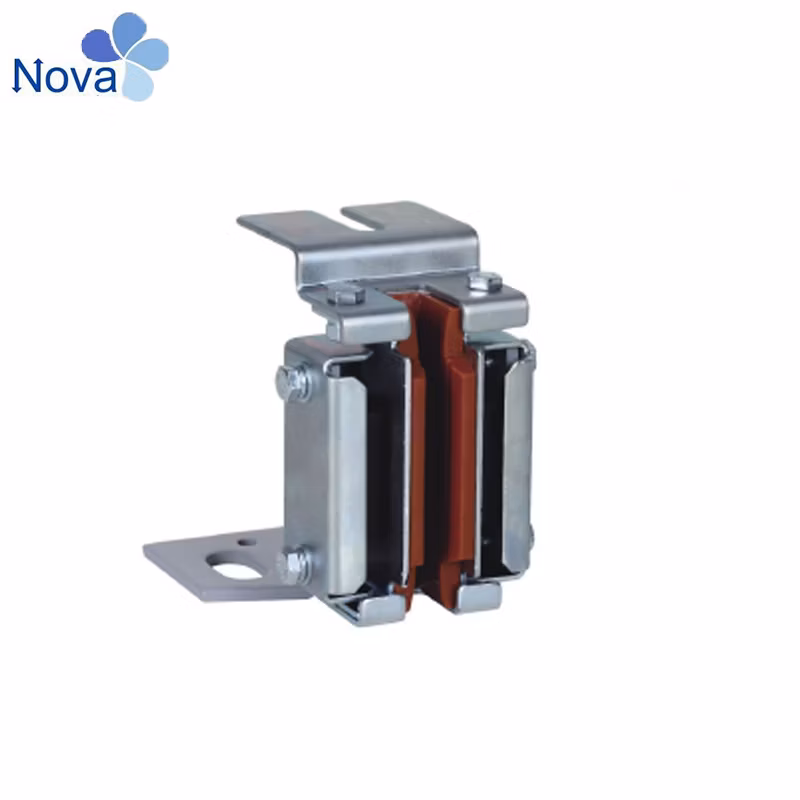

We have Sliding Gudie Shoe and Rolling Guide Shoe for Cabin and Car Frame1. Sliding guide model as below:
Nova Code | Application | Rated Speed(m/s) | Width of guide rail(mm) |
NV25S-M001 | For Cabin | ≤1.75 | 9.10.16 |
NV25S-M002 | For Cabin | ≤2.5 | 10.16 |
NV25S-S001 | For Cabin | ≤2.0 | 10.16 |
NV25S-S002 | For Cabin | ≤2.0 | 9.10.16 |
NV25S-S003 | For Cabin | ≤1.0 | 10.16 |
NV25S-H002 | For Cabin | ≤1.75 | 10.16 |
NV25S-D001 | For Cabin | ≤2.0 | 10.16 |
NV25S-D004 | For Cabin | ≤1.75 | 10.16 |
NV25S-D005 | For Cabin | ≤1.75 | 10 |
NV25S-A001 | For Cabin | ≤1.75 | 10.16 |
NV25S-A002 | For Cabin | ≤1.75 | 10 |
NV25S-M003 | For Counterweight | ≤1.75 | 10,16.4 |
NV25S-M004 | For Counterweight | ≤1.75 | 10,16.4 |
NV25S-M005 | For Counterweight | ≤1.75 | 10,16.4 |
NV25S-S004 | For Counterweight | ≤1.75 | 5,10,16.4 |
NV25S-S005 | For Counterweight | ≤1.75 | 5 |
NV25S-H001 | For Counterweight | ≤1.75 | 10,16.4 |
NV25S-H003 | For Counterweight | ≤1.75 | 10,16.4 |
NV25S-0001 | For Counterweight | ≤1.75 | 16 |
NV25S-0002 | For Counterweight | ≤1.75 | 16 |
NV25S-D001 | For Counterweight | ≤1.75 | 5 |
2. Rolling guide model as below:
Nova code | Application | Roller dia(mm) | Rated Speed(m/s) | Load | Guide rail width(mm) | Remarks |
NV25R-001A | For Cabin | Φ125 | ≤2.5 | ≤1600 | 10.16 | Guide rail width can be re-adjusted |
NV25R-001B | For Cabin | Φ125 | ≤2.5 | ≤1600 | 10.16 | Guide rail width can be re-adjusted |
NV25R-001C | For Cabin | Φ125 | ≤2.5 | ≤1600 | 10.16 | Guide rail width can be re-adjusted |
NV25R-002A | For Cabin | Φ160 | ≤3 | ≤1600 | 10.16 | Guide rail width can be re-adjusted |
NV25R-002B | For Cabin | Φ160 | ≤3 | ≤1600 | 10.16 | Guide rail width can be re-adjusted |
NV25R-003A | For Counterweight | Φ76 | ≤3.5 | ≤3000 | 10.16 | Guide rail width can not be re-adjusted |
NV25R-003B | For Counterweight | Φ76 | ≤3.5 | ≤3000 | 10.16 | Guide rail width can not be re-adjusted |
NV25R-004 | For Cabin | Φ150 | ≤3.5 | ≤2700 | 10.16 | Guide rail width can be re-adjusted |
NV25R-005 | For Cabin | Φ82.3 | ≤2 | ≤2500 | 10.16 | Guide rail width can be re-adjusted |
NV25R-006 | For Villa Elevator | Φ70 | ≤0.4 | ≤320 | 10.16 | Guide rail width can not be re-adjusted |
NV25R-007 | For Counterweight | Φ80 | ≤3.5 | ≤2700 | 10.16 | Guide rail width can be re-adjusted |
NV25R-008 | For Cabin | Φ200 | ≤4.0 | ≤2700 | 16 | Guide rail width can not be re-adjusted |
Company Information
Packaging & Shipping
Our Services
FAQ
1. Price
Re: please send us inquiry from Made in China, we will qutoe to you within 24 hours. It's more convenient and appreciated for us if you provide your company details and your detail inquiry for with elevators.
2. Payment term
Re: T/T or L/C at sight.
3. Installation&Maintaining
Re: We will send installation&maintaining manual along with the with elevator.
Our sugguestion is to hire a professional local company for installation and future maintaining,
once you need any technical assistant from us, just don't hesitate to contact us by mail or phone.
Technician will be sent to the job site if necessary.
4. Shipping&price term
Re: Both FOB/CIF/CFR price term are ok, we have reliable forwarder helping arrange the shipment for you.
